A-156 Dual Quantizer

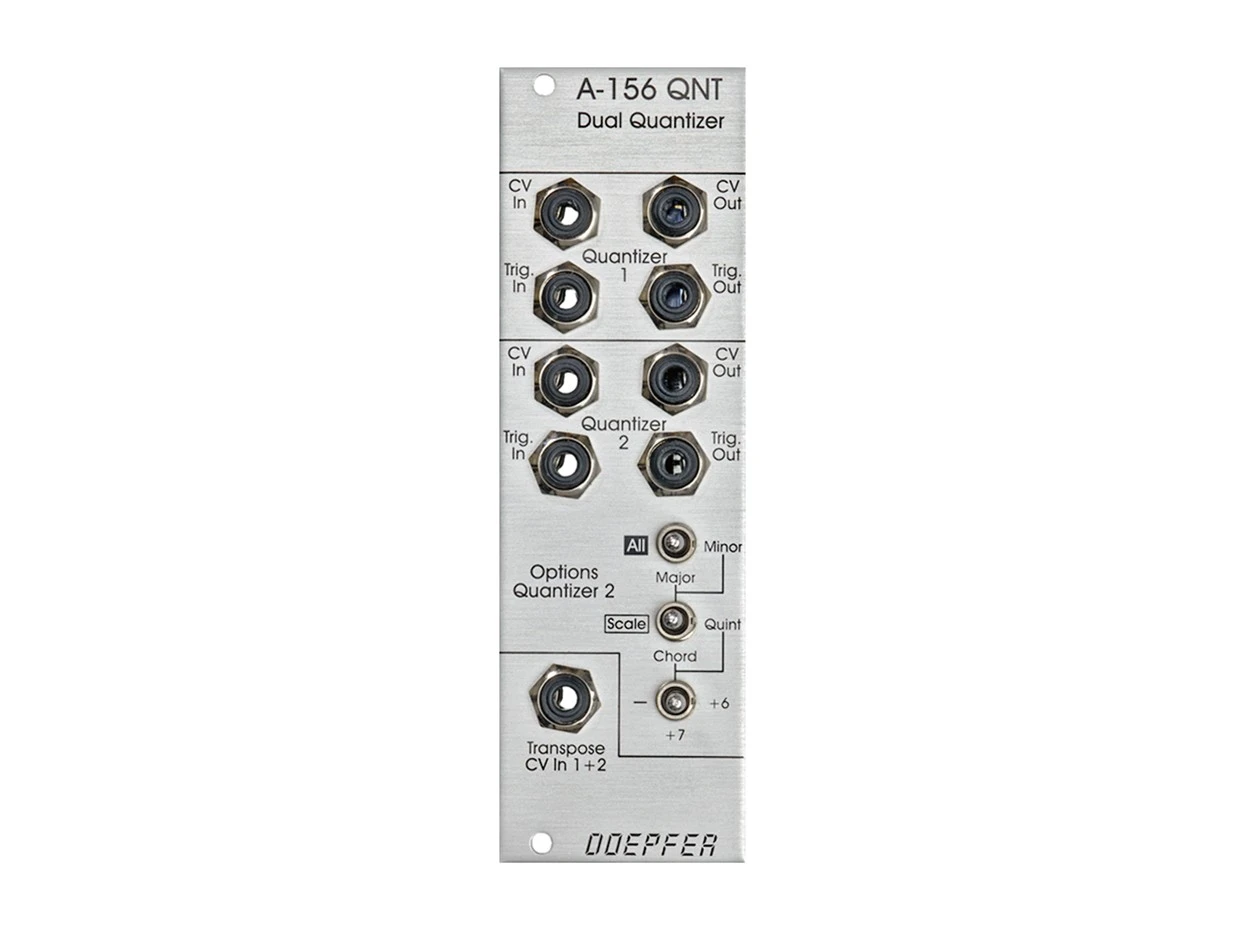

Doepfer A-156

Doepfer’s A-156 module is a dual voltage controlled quantizer capable of converting a continuous CV signal (0 – +10V) to a stepped output voltage in the same range. The module features several different quantization modes: major scale, minor scale, major chord, minor chord, fundamental + fifth, and even adds sevenths or sixths when chord modes are used.

A-156 Features

• Control voltage input (CV In): The input for the contiuous voltage to be quantized
• Control voltage output (CV Out): The output of the quantized voltage
• Trigger input (Trig.In): If this jack is left open the quantizer is working permanently. If a rectangle voltage is applied quantisation happens only at the rising edge of the signal (e.g. from an LFO or MIDI-to-Sync interface). Thus the quantizing can be synchronized with other events.
• Trigger output (Trig.Out): Whenever a quantisation happens (i.e. a new voltage is generated at the CV Out) a positive pulse occurs at this output. It may be used to trigger an envelope generator (ADSR) or for triggering other modules (sequential switch A-151, trigger divider/sequencer A-160/161, trigger delay A-162, …). If none of these functions are used the jack is left open.
