A-188-1D BBD Delay – 4096 Stages

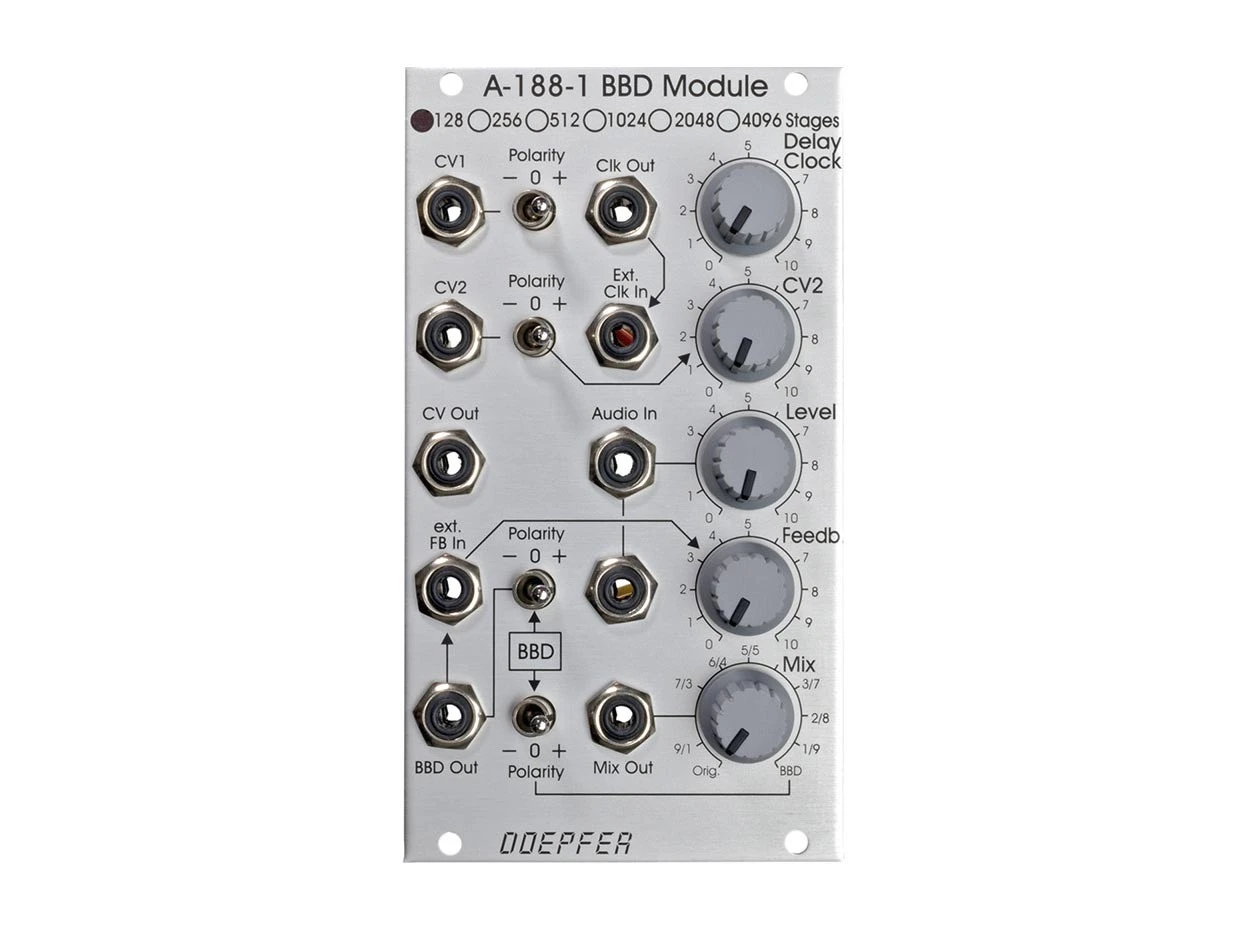

Doepfer A-188-1D

Doepfer’s A-188-1D is an analog delay module that can be used to achieve a variety of different effects. It excels at Karplus/Strong style synthesis, delay effects, chorus, flanger, and much more. While useful as an analog delay, the module is also capable of the kind of self-oscillation characteristic of bucket brigade devices.

The module features a total of 4,096 delay stages, a flexible high frequency internal clock, a delay clock with dedicated input/output and CV control, an external feedback input, and both CV and feedback switches.

A-188-1D Features

• Classic BBD analog delay
• A-188-1D features 4096 delay stages
• Internal clock provides a minimum of 10.2mS delay time
• CV over delay clock rate (and as a result, delay time)
• Delay clock output and external delay clock input (for under and over-clocking madness)
• External feedback input (for per-repeat external processing)
• CV and feedback polarity switches on the front panel
• Summed CV output
• Mix and BBD outputs
