A-196 Phase Locked Loop

Doepfer A-196

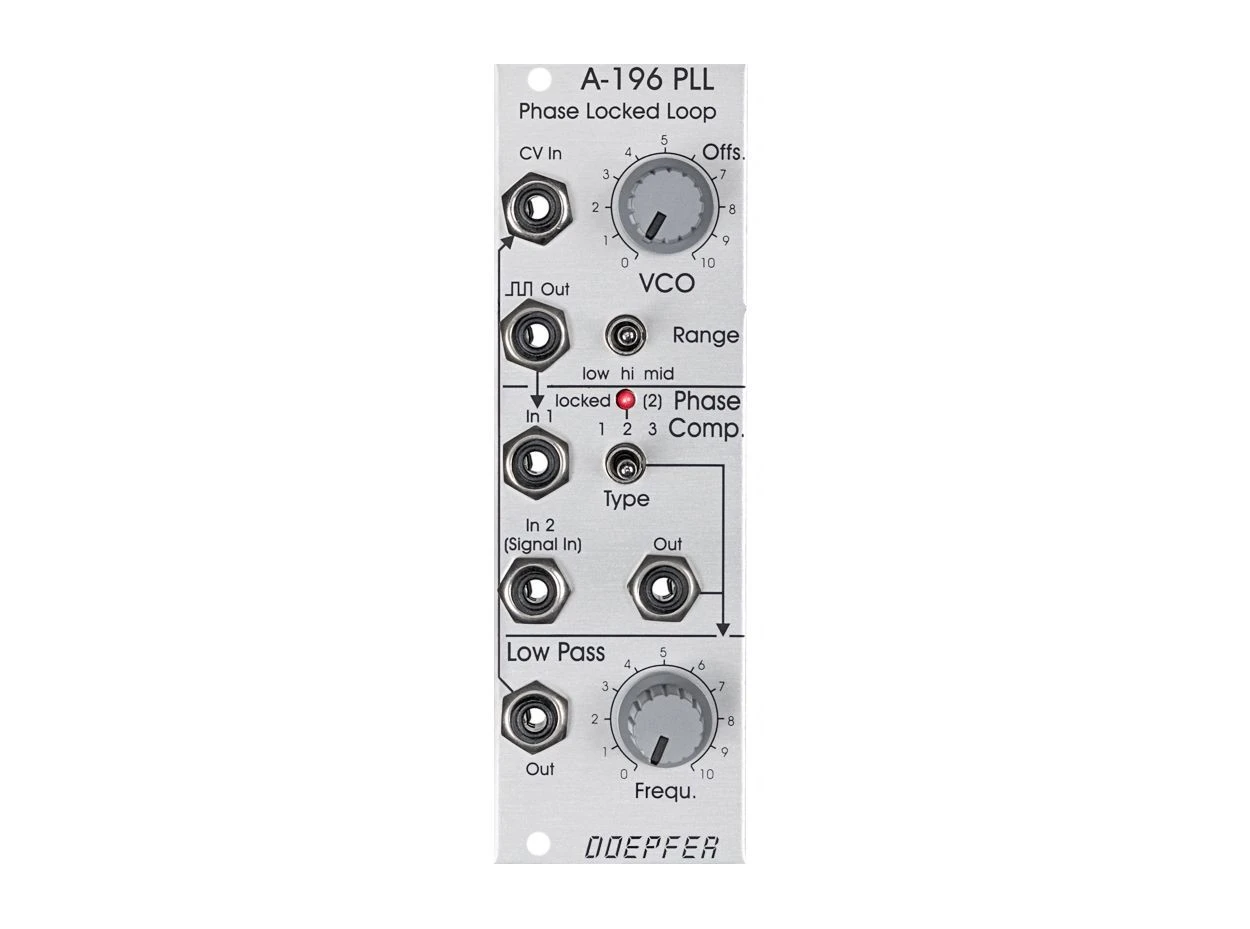

Doepfer’s A-196 Phase Locked Loop module consist of three sections. The first is a VCO with a three position switch for selecting the tracking range. The second is a Phase Comparator with a three position switch between different comparator types that leads to distinctly different timbral characteristics. Finally, the module features a low-pass filter normalled to the output of the Phase Comparator.

A-196 Features

• Three position range switch for VCO tracking range
• Offset knob for offsetting the range of the VCO
• Square wave output normalled to the input of the Phase Comparator
• Three position switch between phase comparator types – different timbral qualities
• Input 1 is the waveform that locks to the Input 2 waveform
• LED indication for locking type
• Dedicated Low Pass Filter, normalled to the output of the phase comparator
