Audio Output (AO)

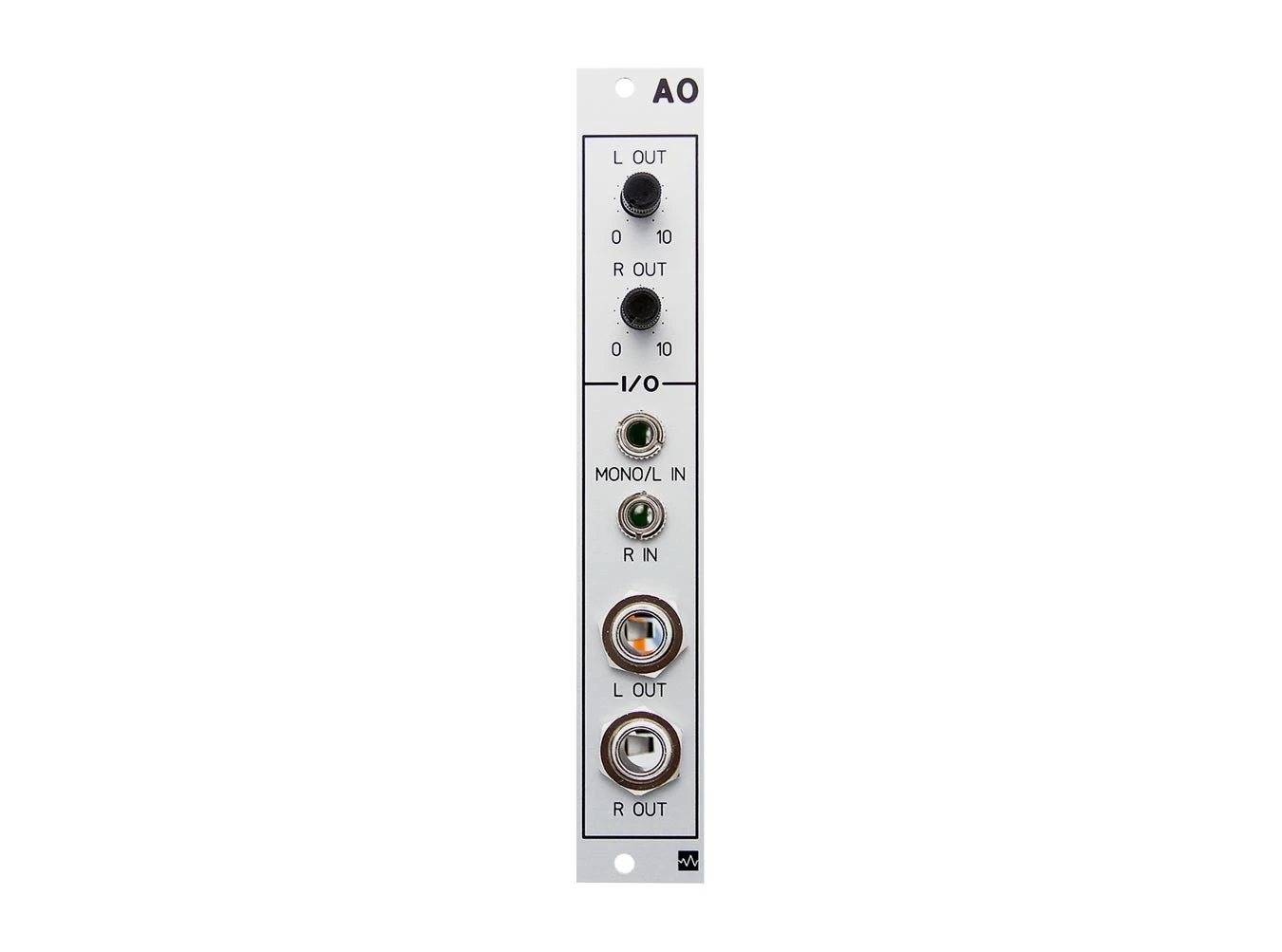

Wavefonix Audio Output

Unify your modular system and line-level recording or mixing system with the Audio Output from Wavefonix, a Eurorack to balanced audio module. The Audio Output can handle either mono or stereo modular signals and output them using 1/4″ balanced outputs, each with their own attenuators that max out at unity gain. With further expansion to monitor your VU levels via a jumper cable, the Audio Output module is a fantastic addition and final step for any modular system.

Audio Output Features

• Stereo output module
• Stereo 1/8″ Eurorack-level inputs with normalled mono left
• 1/4″ balanced stereo outputs with independent attenuators
• Max output is unity gain
• Rear pins connect to the Dual VU Meter
