Black VC Clock V2

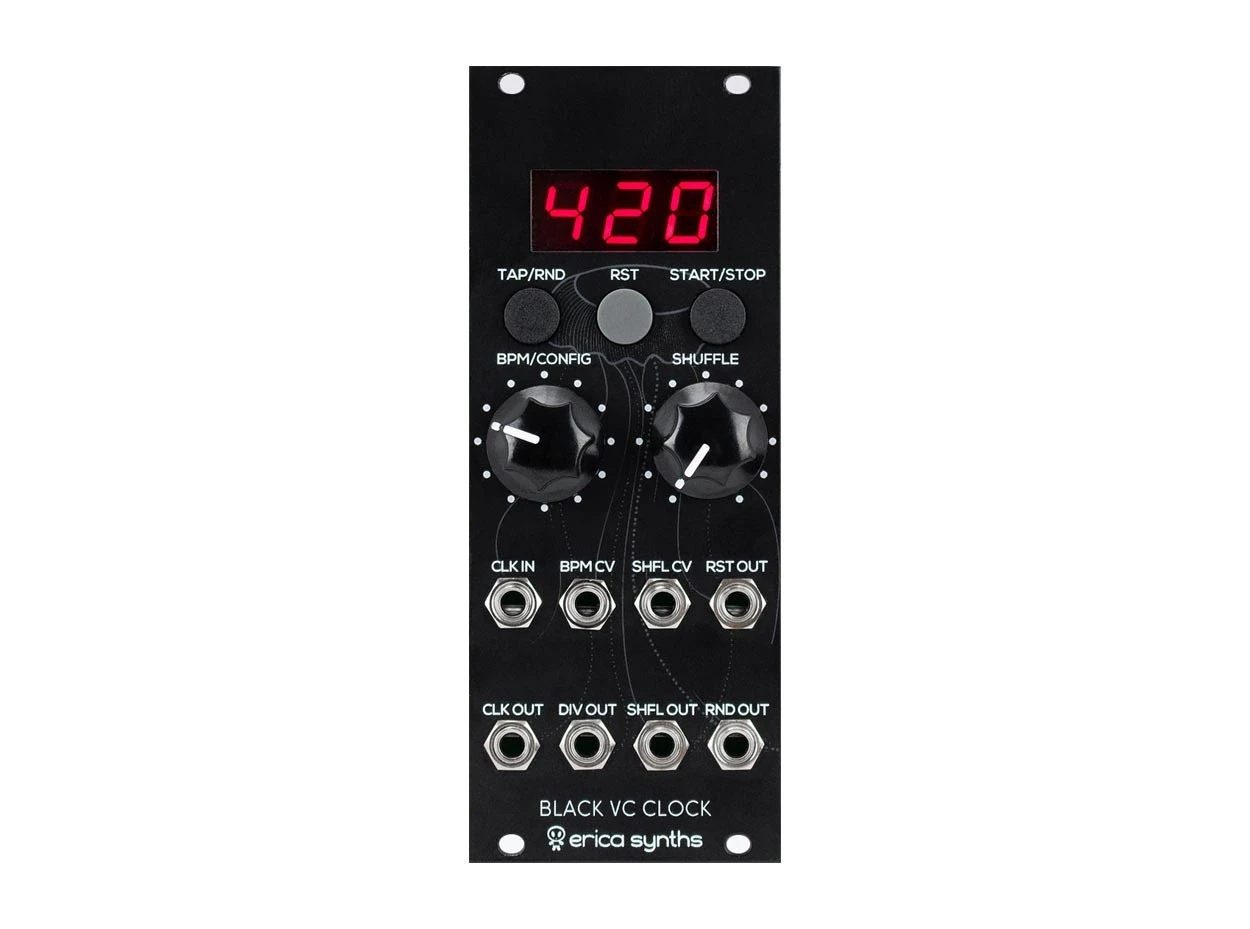

Erica Synths Black VC Clock V2

The Erica Synths Black series VC Clock module is capable of generating simultaneous clock signals and offers divide, shuffle, and tap tempo features. The module is capable of generating both controlled and experimental rhythms for use in a variety of genres.

Black VC Clock Features

• Complex VC Clock Module
• 7 Segment LED Indicator – Shows BPM of Clock Output (Small Dot next to the last digit gives visual indication of Clock Rate)
• Start/Stop Button
• Rate Control – Use this encoder to set BPM manually (When encoder is clicked, users enter Divided Clock menu, and LED Indicators show division rate – Rotate encoder to select desired division rate, default being 2)
• Tap-Tempo Button
• Shuffle Control – Adjust Shuffle Level from 0 CCW to extreme 90% CW
• CV Level Control – Adjusts Rate CV Level for desired BPM Drift
• External CLK Input – LED Indicators show External Clock Rate when External Clock is applied
• CV Input – Output Clock Rate is CV controlled (Apply any CV here to alter Clock Rate, LED Indicators will show BPM set by encoder and will not follow clock changes)
• CLK Output – Output of Regular Clock indicated on LED
• DIV CLK – Output of Divided or Multiplied Clock
• SHUF CLK – Shuffling Clock Output (Use for more human feel of rhythm, it follows BPM but each 2nd beat is displaced slightly)
• RND CLK – Generates random clock pulses, relative frequency of which is set by BPM
