Discrete SVVCF Filter & Mixer

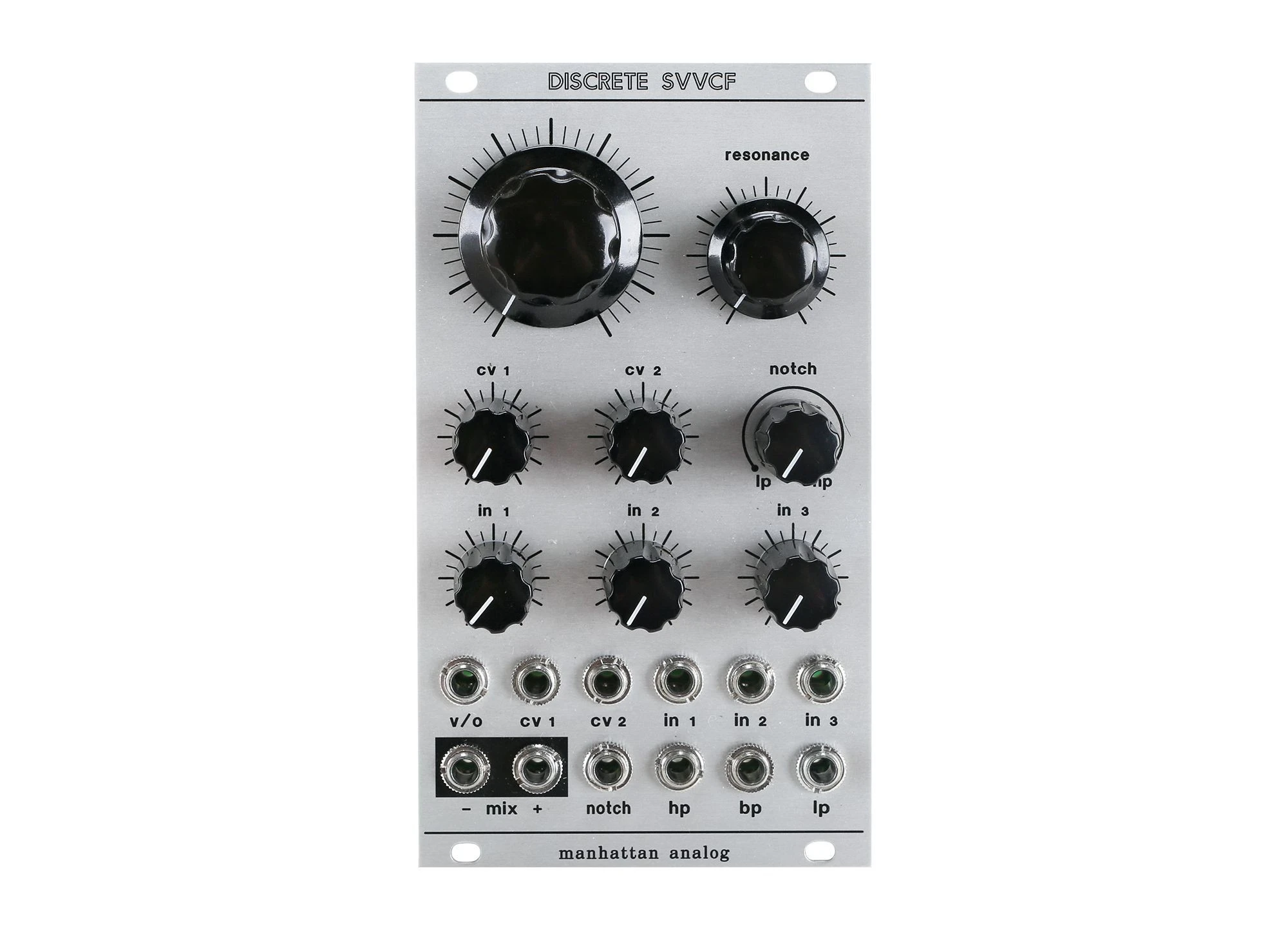

Manhattan Analog Discrete SVVCF

The Manhattan Analog Discrete SVVCF is an amalgamation of a state variable filter with a CP3 Mixer. The mixer, also present in MA’s DTM mixer module, uses discrete transistor topology without any op-amps and is core to the classic Moog tone. It can really push the input signals into distorted harmonic territory, perfect for the filter to bite into. The filter features notch, high-pass, band-pass, and low-pass outputs.

Discrete SVVCF Features

• Cutoff Control
• Resonance Control
• CV1/CV2 Inputs & Attenuators
• Mix Phase Control
• 3 Audio Inputs
• 3 Input Level Controls
• Mix, Br, Hp, Bp, Lp Outputs
