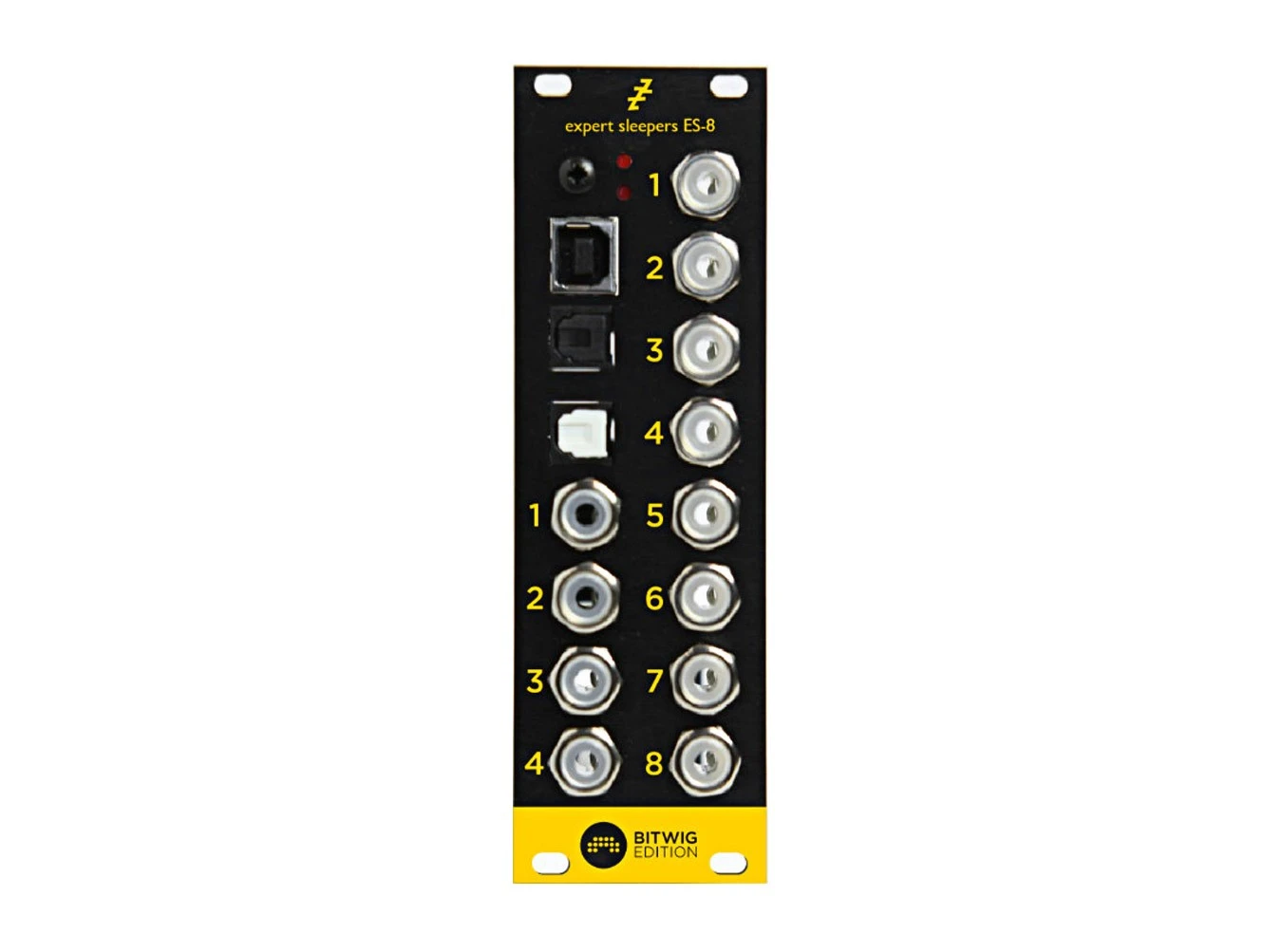

ES-8 USB Audio Interface (Bitwig Edition)

Expert Sleepers ES-8

The ES-8 is a USB 2.0 interface that is the perfect way to integrate one’s modular synthesizer with their computer hardware and software. Its DC-coupled inputs and outputs ensure precise processing of both audio and CV signals and render the module compatible with CV generation software (Silent Way, Reaktor, Max/MSP, CV Toolkit, etc). Additionally, the ES-8 sports ADAT inputs and outputs, allowing it to connect directly to an audio interface and provide extra preamps or 1/4″ outputs. It can also connect to the ES-5 and ES-6 via expansion header.

ES-8 Features

• Limited edition Bitwig faceplate
• Includes Bitwig 8-Track license
• USB socket: Type B
• Driver suport: class-compliant USB 2.0 (no Windows support initially)
• Channel count: 12 in, 16 out
• Supported sample rates: 44.1kHz, 48kHz, 88.2kHz, 96kHz
• Output connections: 8x 3.5mm jacks, DC-coupled
• Maximum output voltage: approximately +/- 10V DC
• Analogue inputs: 4x 3.5mm jacks, DC-coupled
• Input voltage range: approximately +/- 10V
• Digital I/O: 1x ADAT input, 1x ADAT output
• Expansion headers: 1 for ES-5, 1 for ES-6
