PV44 Preset Voltages + IMI Bundle

Xodes PV44 Preset Voltages + IMI Bundle

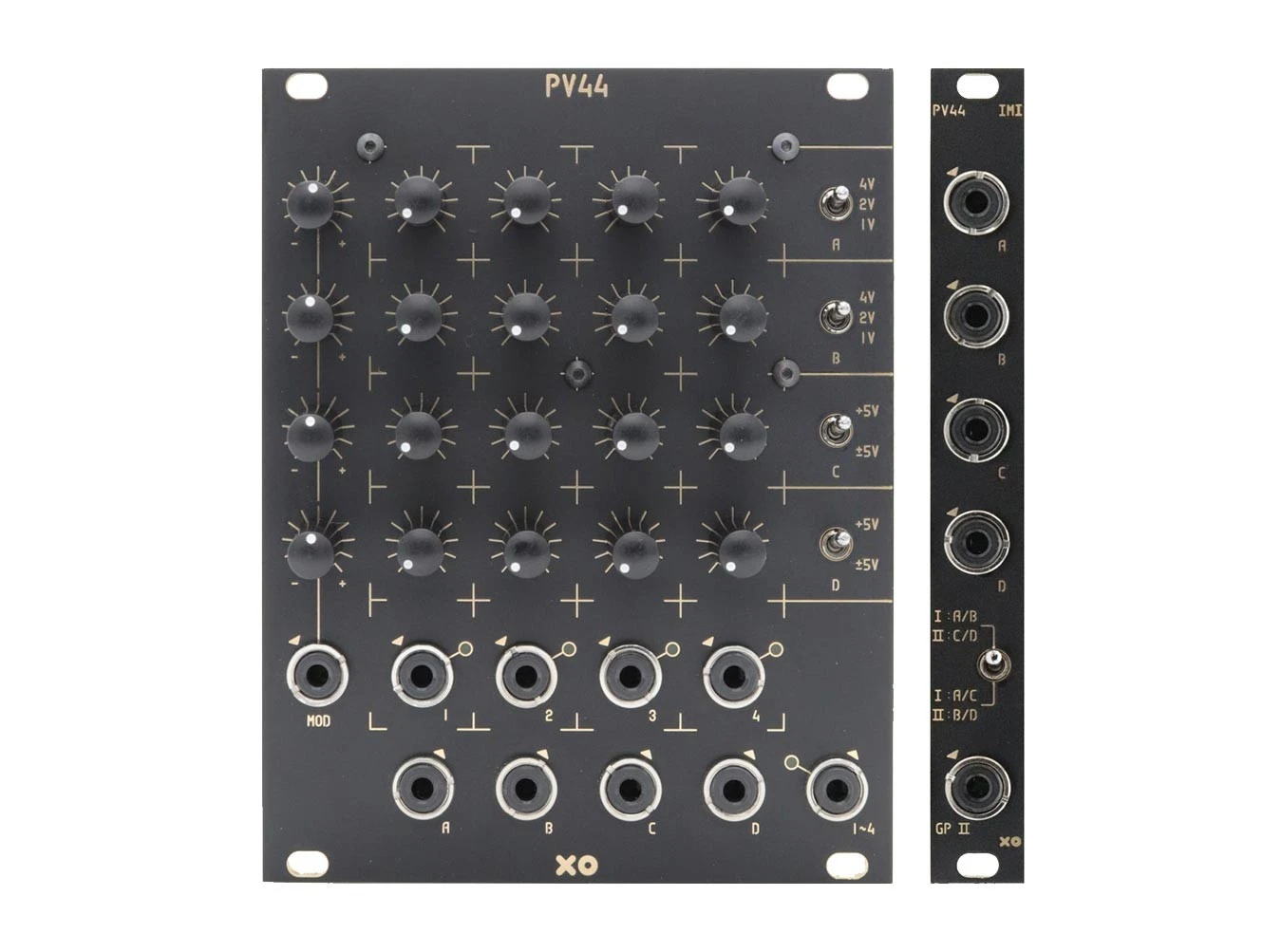

Recall four different parameter states in a wide variety of voltage ranges with PV44 and IMI from Xodes, a four-by-four voltage preset system to introduce diversity and interest into your patches. Each voltage channel has an individual output as well as a master output, and for each channel row there is a column of voltage offsets for sending to your modular rig. To call upon each row, there are four trigger inputs dedicated to each row—note that the trigger inputs implement OR logic so the master output doesn’t sum voltages from multiple stages. Each channel can be uniquely set to a range of voltage offset, where channels A and B can be a range of 1V, 2V, or 4V while channels C & D can be either 5V or +/-5V.

Each of PV44’s channels share a modulation input but can be individually dialed in via the attenuverters on the left. For more individual control with more modulation of the voltage offsets, Xodes has included the IMI expander module for PV44 in this bundle. IMI offers four additional inputs, one for each channel, that allows for unique modulation per channel, and additionally, IMI allows you to split the common modulation input into two group inputs with two grouping options. All in all, the PV44 from Xodes is the perfect module to sequence and recall variable states of your voices, effects, and modulation states for a sonically complex modular system.

PV44 Preset Voltages + IMI Bundle Features

• 4 x 4 voltage preset selector and expander module
• Channel A & B ranges 1V, 2V, or 4V via switcher
• Channels C & D ranges +5V or +/-5V via switcher
• Four voltage groupings selected via trigger input
• Individual and master channel outputs
• Singular modulation input with attenuverters per row
• Expander module allows individual modulation inputs as well as an additional group modulation input that splits the four into two group modulation busses
• Includes 1hp blank
