SID GUTS Deluxe C64 Voice

Original price was: $399.99.Current price is: $99.99.

Eurorack Module
12 HP Width
30-40mm Depth (with heat sinks installed)
Supply: +/-12V (Reverse voltage protection)
Current Draw: ~50 -200ma (dependent on SID chip used)

Multiple payment methods, 100% payment security

Best price, safe shopping guarantee

Top-Notch Quality

Quality products for every lifestyle.

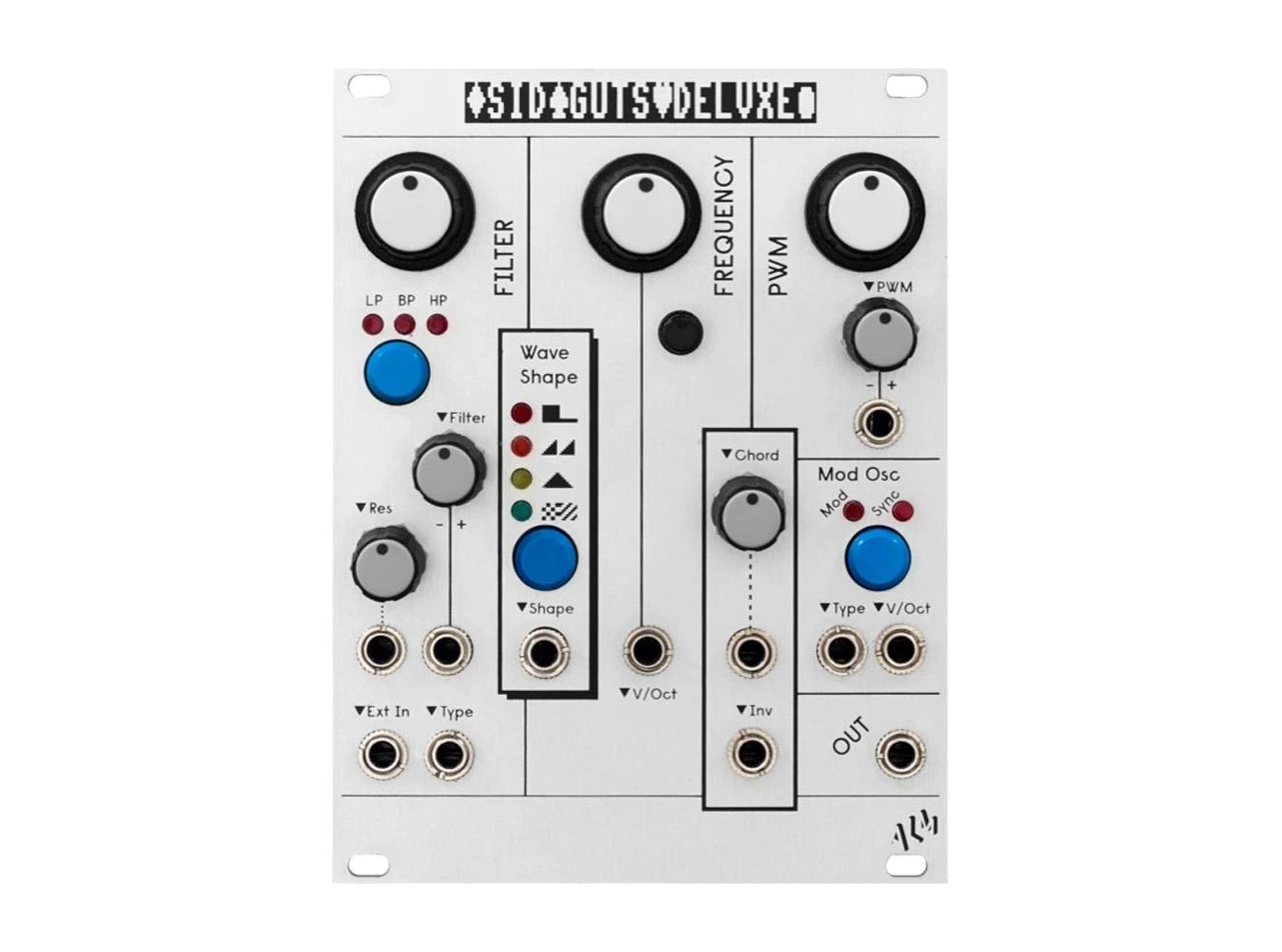

ALM Busy Circuits SID GUTS Deluxe

The ALM Busy Circuits SID GUTS Deluxe improves on its predecessor—which re-appropriated the SID chip into the modular realm—by offering extensive manual and voltage control options. Compared to the original, the module now features improved frequency control, a chord mode that uses all of the available oscillators to form a 1-3 voice chord, and a bunch of other sonic possibilities.

SID GUTS Deluxe Features

1 Volt per octave control of a ‘core’ SID oscillator 0-5v input (with tunable offset,) now with improved V/Oct tracking, adjustment and stability.
Voltage controlled chord mode with inversion and up to 3 voice chords.
Direct and voltage control of oscillator wave shape selection (Pulse, Triangle, Square, Saw)
Filter switchable between 4 modes – 12dB/Octave HP , LP , BP & Notch (HP+LP)
Voltage control of filter type selection.
Wider frequency control range (full 8 octaves) with fine and course offset knobs.
Attenuverters on both PWM and Filter voltage inputs.
Direct and Voltage control (with offset) of Filter cutoff and Resonance
1 Volt per octave control of second SID ‘modulation’ oscillator
Direct and voltage control of modulation oscillator ‘type’; ring modulation, sync or none
Direct and voltage control of pulse wave pulse width
External audio input
Support for ALL SID chips (6851/8580) & SwinSID chips
All settings non volatile
Audio output and input at modular levels
All surface mount single PCB construction thus smaller depth & more skiff friendly.
Designed and built in England
