STVC String Synthesizer / Vocoder Keyboard

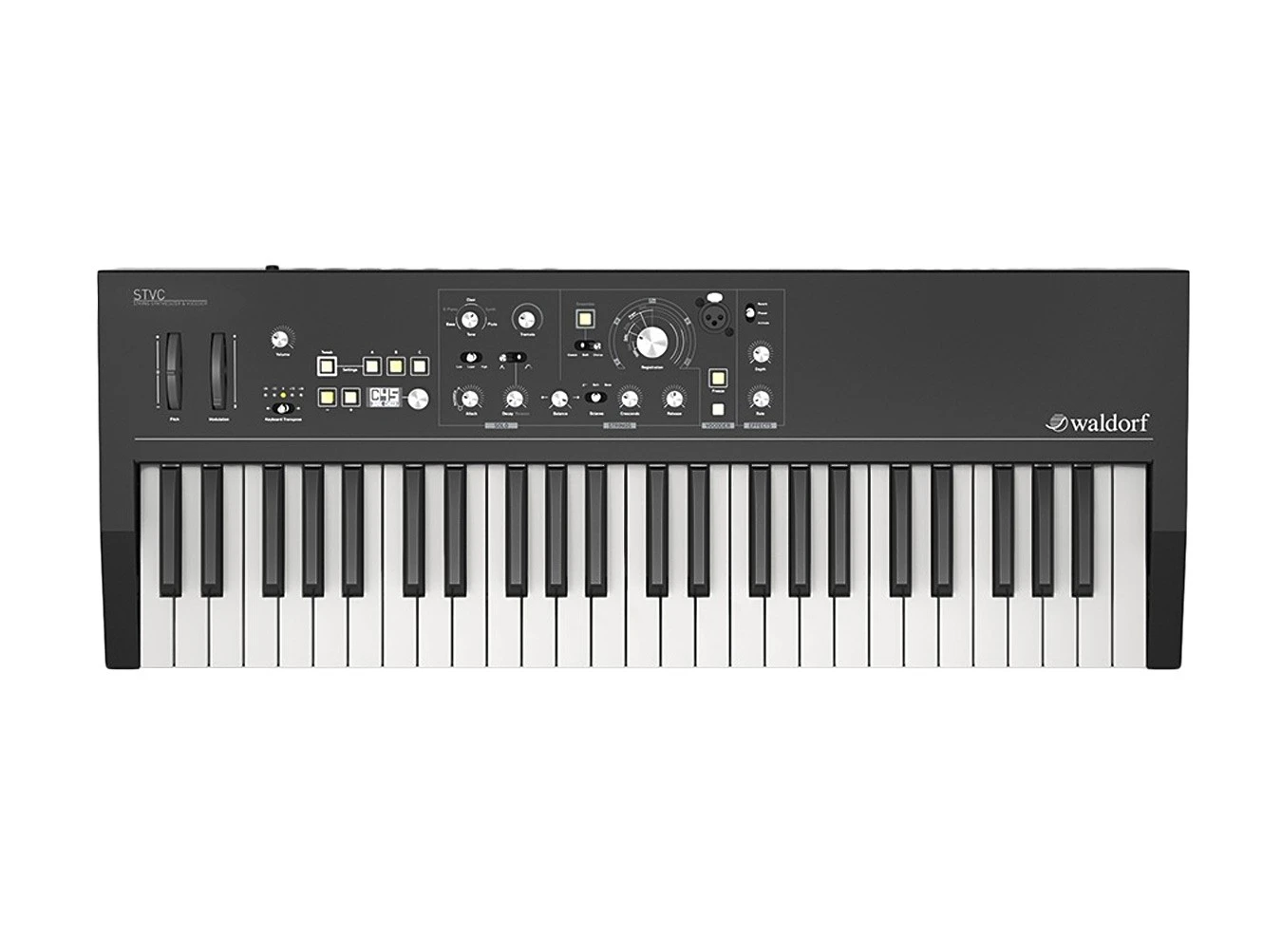

Waldorf STVC

Waldorf’s Streichfett Keyboard (STVC) is a combination of a string synthesizer and vocoder with a unique flavor. It features a 49-note keybed with aftertouch, pitch bend, and modulation—all housed inside a rugged metal chassis. Its convenient OLED display gives unfettered access to 126 user-programmable patches spread across three banks. On top of all this, STVC features a powerful and intelligible vocoder with freeze mode, a polyphonic carrier, and gender modifier.

STVC Features

Hardware:

• Full metal case
• Keyboard with 49 keys, aftertouch and velocity
• Keyboard transpose +/- 24 semitones via dedicated switch
• Pitch bend and Modulation Wheel
• 128×64 pixel OLED
• 10 potentiometers, 1 encoder, 9 backlit buttons, 5 switches
• 44 cm gooseneck microphone with indicator LED

Connections:

• MIDI in/out
• USB/Power
• 6.3 mm Sustain Pedal input
• 6.3 mm Expression/Ext. signal
• 3.5 mm Headphone out
• 6.3 mm Line out Left/Stereo
• 6.3 mm Line out Right/Mono
• XLR Microphone jack on front panel

Sound engine:

• Fully polyphonic String section
• Continuous morphing of String Registration
• 16 Voice polyphonic Solo section
• Continuous morphing of Solo sounds
• Tremolo for Solo
• 126 programmable patches in three banks
• Tweak for modulation and specific adjustments

Vocoder:

• 250 Filter bands
• Excellent intelligibility
• Formant modification
• Freeze mode
• Fully polyphonic carrier
• Optional jitter for string carrier
• Continuous morphing of Registration

Effects:

• Animate Effect for modulation of Registration
• Ensemble/Chorus Effect for Strings and Vocoder
• Phaser Effect for Strings and Vocoder
• Reverb Effect
• All Effects available simultaneously
