Total Recall Preset Manager + Macro Controller

Endorphin.es Total Recall

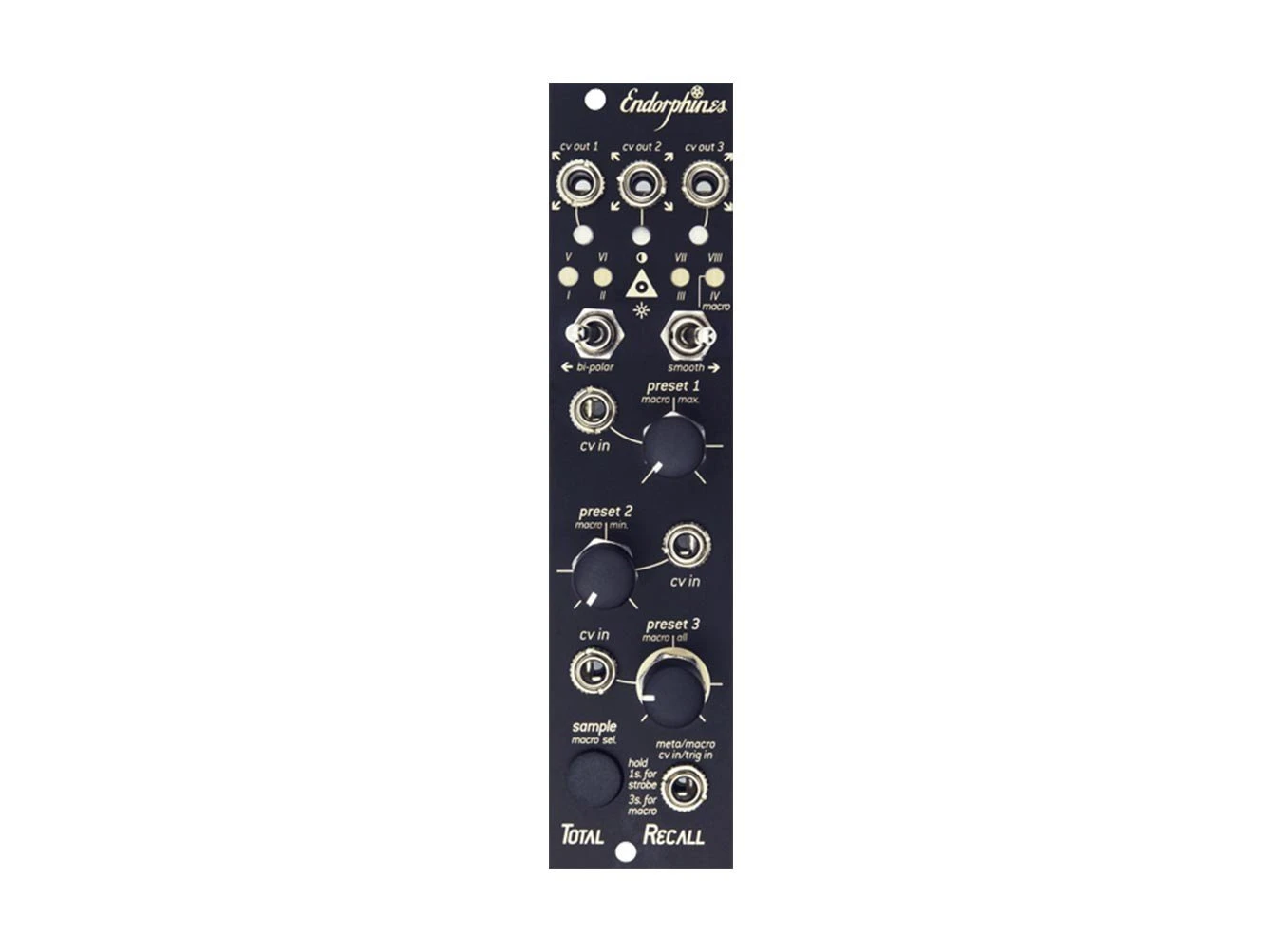

Total Recall from Endorphin.es is a three-channel preset manager and macro controller that adds easy recall of preset voltages to your fingertips. It features both a preset mode and a macro mode, which generate and process CV in different ways. In preset mode, you get access to a set of three CV levels, saved into eight slots, and presets are retained even when power cycled. These work as either unipolar or bipolar generators or processors—when using any of the three preset CV inputs, the knobs become attenuators or attenuverters, depending on the polarity switch. Select the active preset using the button, or use the meta modes to automate preset selection. Either scan presets with CV, or use a trigger signal to step through presets. The triggered mode either jumps immediately between presets or with a 100ms slew, set by the smooth switch. The macro mode allows you to define the minimum and maximum voltage levels for the three outputs. Preset knob 1 sets the maximum, preset knob 2 sets the minimum, and preset knob 3 moves between the two settings. These also work as CV processors with predefined level and polarity settings. Applying a CV signal will transition between the minimum and maximum levels, and a trigger input will jump from minimum to maximum with an optional 100ms slew. Total Recall is an indispensable live performance tool, giving you direct and dynamic control over predefined settings.

Total Recall Features

• Macro controller and preset manager
• Save up to eight preset voltage levels
• Set macro minimum and maximum levels
• Generates offset CV or processes external CV signals
• Bipolar or unipolar modes
• CV and trigger control over preset recall and macro level
• Triggered mode features optional 100ms slew
