VCD Low-Frequency Oscillator (VCDLFO)

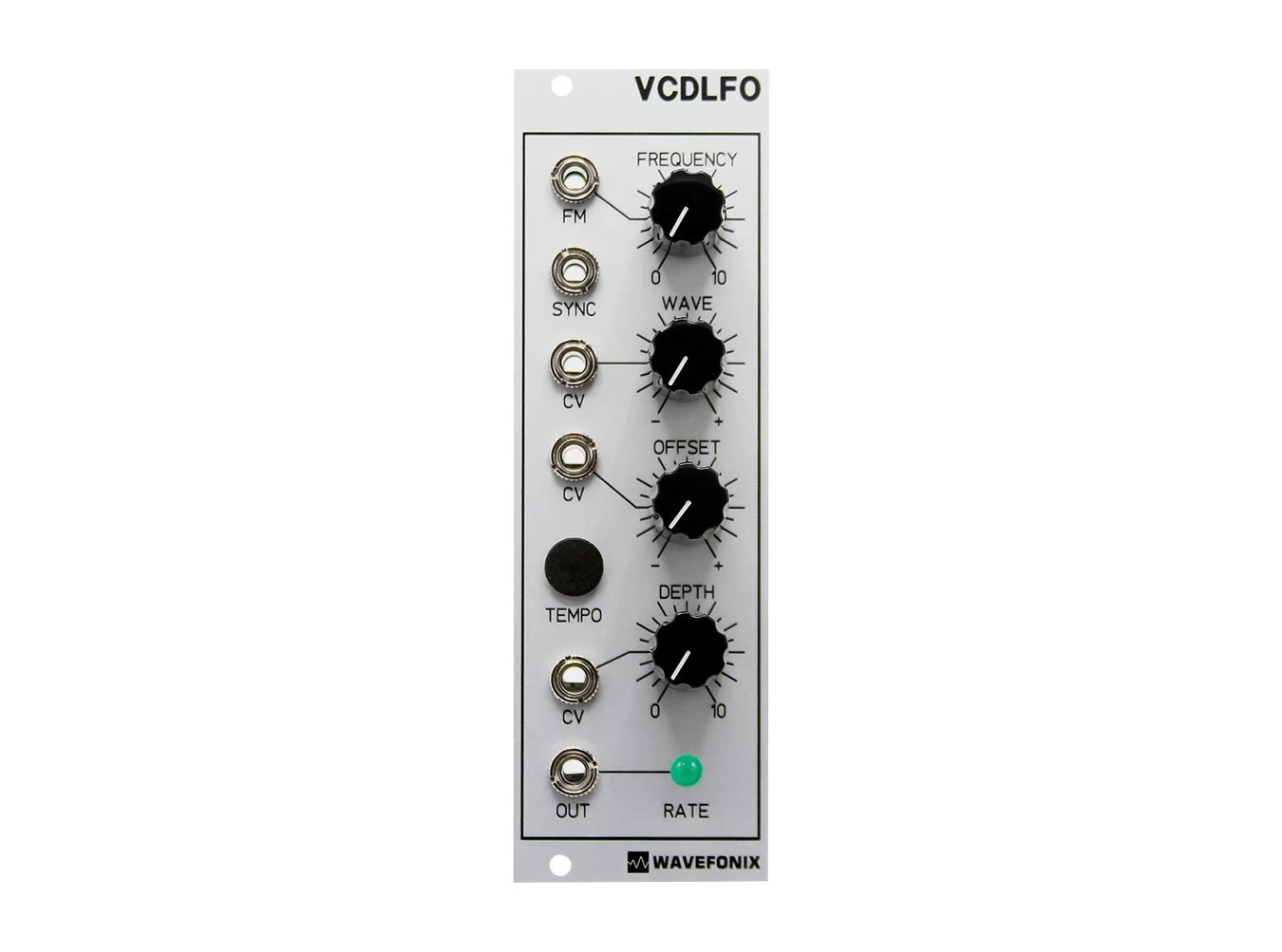

Wavefonix VCD Low-Frequency Oscillator

Include the hi-fi capabilities of multi-faceted modulation sources to your case with Wavefonix’s VCD LFO, a digital LFO module featuring multiple shape outputs and loads of modulation inputs for complex results. VCD LFO showcases eight available 16-bit wave outputs with six repeated shapes and two random sources, one being more in the style of S&H and the other smoothing out from jump to jump in voltage. You not only have immediate access to the selection of waveshape but you also can manually or automatically scan through them via the onboard potentiometer and CV input. The rate of which the VCD LFO runs at can be handled manually by the frequency control as well as synchronized to a manual tap tempo or even an external one via the sync input. Modulate the frequency automatically via the FM input that even responds to 1V/Oct tracking, and best fit your modulation needs via the offset and depth controls acting as a gain and bias set with CV inputs for each. With an LED to give visual feedback of your outputting LFO’s rate, the VCD LFO is a compact yet powerful modulation source to add depth and movement to any patch.

VCD Low-Frequency Oscillator Features

• VC digital LFO module
• Eight selectable 16-bit waveforms (ramp up/down, square, triangle, sine, sweep, random levels (S&H) random slopes (linear point to point))
• Bipolar wave selector with CV input
• Frequency control with FM input and hard sync input for reset/sync
• Rates from 0.05Hz to 25Hz
• Adjustable +/-5V DC offset and Depth control acting as a gain, both with CV inputs
• Tap tempo button for tempo synced LFO
• LED rate indicator attached to output
• All CV inputs are 0V-10V scaling and summed with panel controls
